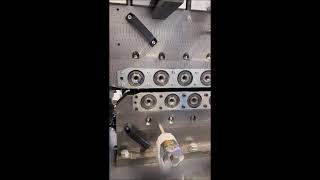

FEINTOOL FB ONE 11000 hydraulic press
Niederhelfenschwil7008 km to "United States/Columbus"
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+41 71 948 ...
Show
+41 71 948 70 63
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Switzerland, Niederhelfenschwil
Special equipment fineblanking press:
+ block hydraulics for 4th and 5th force. High pressure 30-270 bar.
+ mechanical reamers (without tool-bound sliders)
+ additional operating mode "cutting without counter-holder and V-ring"
+ additional operating mode "manual insert mode"
+ 2 blast air circuits with 6 connections each
+ Additional tool monitoring
+ RAZIOL roller belt lubrication system with 2 reservoirs
+ Interface for monitoring the cooling system
- the scrap conveyor (visible on photos) is not part of the scope
ARKU single reel with loading chair:
+ 2 pressure arms for high-strength coil material
+ Coil guidance via conical rollers
+ Automatic coil centre positioning
ARKU feed straightening machine:
max. straightening cross-section at 600 N/mm2: 3510 mm2
+ Synchronised drive of the straightening rollers
+ Hardened and ground straightening rollers
+ Servo-hydraulic leveller gap control
+ Straightening roller quick-change system
+ intermediate roller release
+ Measuring wheel for feed control
Absolutely mint condition: just 3'300 running hours, 700'000 strokes
Special equipment fineblanking press:
+ block hydraulics for 4th and 5th force. High pressure 30-270 bar.
+ mechanical reamers (without tool-bound sliders)
+ additional operating mode "cutting without counter-holder and V-ring"
+ additional operating mode "manual insert mode"
+ 2 blast air circuits with 6 connections each
+ Additional tool monitoring
+ RAZIOL roller belt lubrication system with 2 reservoirs
+ Interface for monitoring the cooling system
- the scrap conveyor (visible on photos) is not part of the scope
ARKU single reel with loading chair:
+ 2 pressure arms for high-strength coil material
+ Coil guidance via conical rollers
+ Automatic coil centre positioning
ARKU feed straightening machine:
max. straightening cross-section at 600 N/mm2: 3510 mm2
+ Synchronised drive of the straightening rollers
+ Hardened and ground straightening rollers
+ Servo-hydraulic leveller gap control
+ Straightening roller quick-change system
+ intermediate roller release
+ Measuring wheel for feed control
Press Design
drive system: servohydraulic
frame design: H-frame, tie rod
quick die change system: yes
feedstock transport direction: left to right
Slide
total force (nominal): 1100 to
stroke: 130 mm
stroke rate (max.): 60 /min
Counter Ram
nominal force: 330 to
stroke: 40 mm
V-Ring
nominal force: 500 to
stroke: 40 mm
Tool Dimensions
lower table (left-right): 960 mm
lower table (front-back): 960 mm
upper table (left-right): 960 mm
upper table (front-back): 960 mm
shut height max.: 470 mm
Overall Specifications (coil lines)
sheet width max.: 500 mm
sheet thickness max.: 16 mm
coil weight max.: 8 to
feedstock transport direction: left to right
Coil Chair
coil weight max.: 8 to
stroke: 700 mm
Decoiler
coil weight max.: 8 to
max. diameter of coil: 1800 mm
mandrel expansion range from: 470 mm
mandrel expansion range up to: 530 mm
Leveller Unit
sheet width max.: 500 mm
sheet width (min): 80 mm
sheet thickness max.: 16 mm
sheet thickness min.: 1.5 mm
material cross section max. (450 N/mm2): 3510 mm²
number of leveller rolls: 17
integrated feed function: yes
intermediate clamp release: yes
cleaning device for leveller rollers: yes
Crop Shear
cutting force: 800 kN
Electrical specifications
mains power supply: 350 kVA
mains voltage: 400 V
mains frequency: 50 Hz
Dimensions / weights
total weight approx.: 75350 kg
