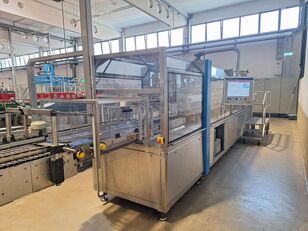

Krones Solidpac other packaging machinery
Salzburg
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+49 89 380...
+49 89 38031644
Germany, Menslage
Moldova, rl. Ocnita
Spain, Barcelona
Spain, Barcelona
Netherlands, Nieuwerkerk aan den IJssel
Germany, Kaiserslautern
Netherlands, Nieuwerkerk aan den IJssel
Germany, Menslage
Spain, Barcelona
Netherlands, Nieuwerkerk aan den IJssel
Germany, Burgwald-Ernsthausen
Germany, Dabergotz
Spain, Barcelona
Germany, Dabergotz
Germany, Menslage
Germany, Cologne
Manufacturer
Krones
Model
Solidpac
Year of manufacture
2006
Machine type
Packaging machine (wrap-around case/carton packer)
Condition
Currently not in operation
Product used with machine
Single-use glass bottles 0.33 L
diameter 61.5 mm
packed in wrap-around cardboard
pack arrangement 2x3
Reference product specification per manufacturer data sheet
Glass bottle diameter 78 mm,height 276 mm
710 ml
Pack arrangement per manufacturer data sheet
2x3
Technical Specifications
Dimensions without conveyor: Length 10,900 mm
Walking height 1,200 mm from the floor
Maximum speed: 150 packs per minute
Power supply: 400 V three-phase plus neutral
8 kVA
Air supply: 5 bar
Noise level: less than 75 dBa at 1 meter distance
Electrical connection per machine plan drawing: 400 V three-phase plus neutral
40 A
Pneumatic connection per machine plan drawing: 6 bar
diameter 10/12 mm
Main components and functions
Infeed conveyor
Ensures a constant product supply to the machine. The conveyor has 3 sensors per lane to detect product presence
allowing the machine speed to be adjusted
Metering wheels
Synchronize the product flow with the machine
Grouping module
Assembles the product packages
Front conveyor
Transports the products and cartons from the grouping module to the rear conveyor
Carton magazine
Holds the cartons
which are then removed individually by the carton separator. Carton feed is driven by belts and a gear motor
controlled by a sensor in the lower front area
Carton separator
Removes individual cartons from the magazine and places them on the belt onveyor when the presence of a product is detected by a photoelectric sensor. Cartons are picked up using vacuum suction cups supplied by a vacuum pump
Carton transport
Consists of two belts fitted with drivers
ensuring the carton is conveyed in phase with the product package. A photoelectric sensor detects a carton that has been placed
Upper transport device
Conveys the products and carton from the front conveyor to the outfeed belt. Height adjustment is automatic
using a photoelectric sensor and a counting disc
Rear conveyor
Transports the products together with the cartons from the front conveyor to the outfeed belt
and aligns the two side flaps of the carton to each other
Drive unit
Provides the mechanical drive for the various machine modules and their synchronization. Mechanical protection of the modules is ensured by a torque limiter
Hot glue unit
Applies a hot glue track. Glue is only applied when the motor is running and a pack is present
as detected by a photoelectric sensor. Heat-up time for the hot glue unit is approximately 45 minutes. The position and length of the glue track are controlled via the PLC in the control cabinet and can be set on the touch panel
Gluing when machine is stopped
If the machine is stopped during a processing cycle
the last glued pack is still closed by a pneumatic cylinder
Dividing switch
Divides the packs from one lane into two lanes according to the format. Can be adjusted in width according to the format
